NC Semi-Automatic Bending


Double Heads Tube Bending Machine


  • The SW-CNC series double-headed pipe bender was selected for its unparalleled productivity and can bend 2 X multiple pipes at the same time.
Direct supply from the manufacturer
Order phone:+86-13812981723
E-mail: liye@liyemachine.com

Detail

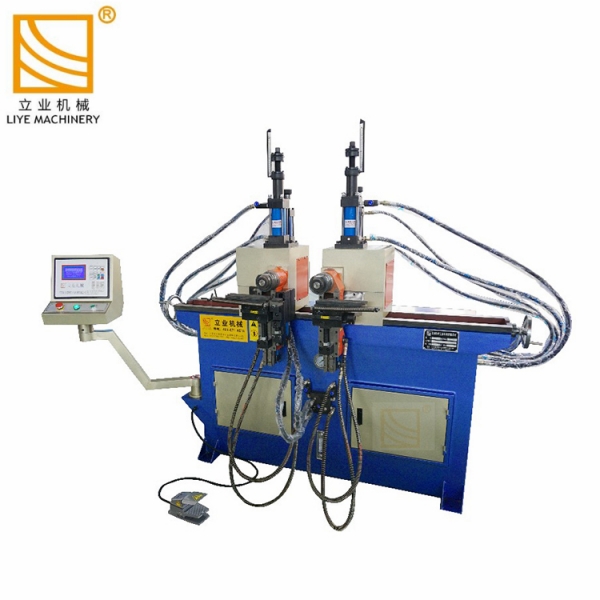

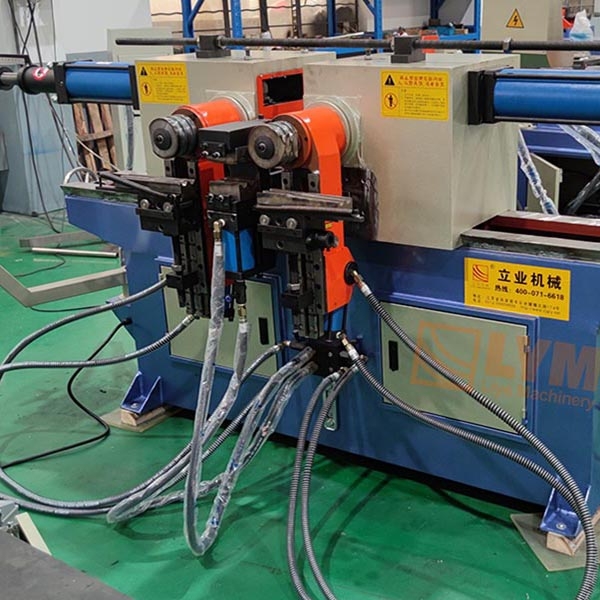

Chosen for its unparalleled productivity, the double heads tube benders SW series is able to make 2 bends X Multiple tubes simultaneously. Here are some of the advantages of this Globally Patented design:

• Standard with 90° head rotation for Tube Bending
• Stationary clamps to maintain the tube in position before bending
• Arc movement of the bending heads allows high production rates
• Low setup times with quick-change tooling design and readout for length and angle settings
• Production speed: 3.8 seconds (25.4 mm X 2t X 90°, 2 tubes at one time)(Tube Diameter 12mm,3 tubes at one time)
• PLC control for easy operation and maintenance
• Full-cycle bending + half-cycle bending


Individual bending angle setting for each bending head
Readouts for the settings of the bending angles and straight distance between bends
Can process 2 bends and 2 tubes to X Multiple tubes (depands on tube diameter)at the same time
Center distance between bends from 110 mm to 1,800 mm
Double heads pipe bender can be divided into standard type (SW38) and rotary type (SW38A) according to structure of the base. The head of the rotary type bender (SW38A) can adjust the angle of elbow freely, but it shall consider the material feed problem.

Description

Brand Name:

LYM

Model Number:

SW25B/SW38/SW38A/SW50/SW50A

Type

NC CONTROL SEMI-AUTOMATIC

Certification:

CE/SGS/TUV/ISO

Place of Origin:

China

Application

Pipes or solid bars,various materials such as steel, stainless, aluminum and copper

Packaging Details

Packed in stretch film firstly,and then reinforced with plywood for outer packing

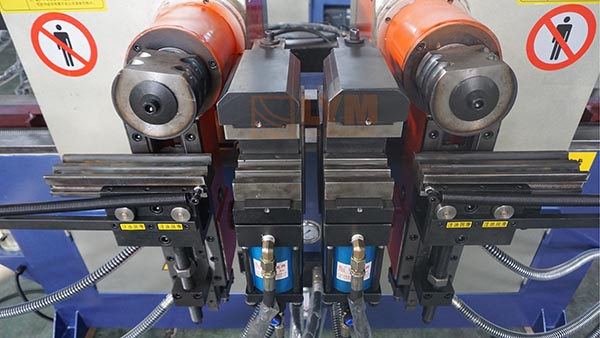

90 degree head rotation allows for accuracy

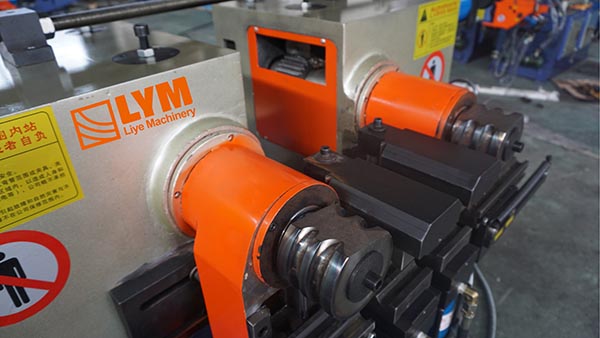

Stationary clamps to maintain the tube in position before bending

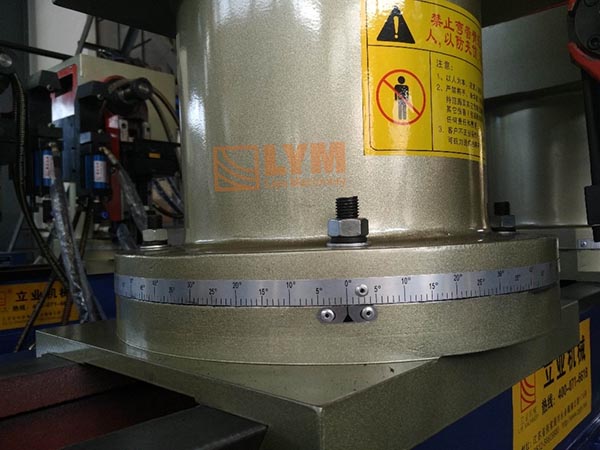

Accurate scale indication of rotation

DOUBLE HEADS PIPE BENDER MAIN TECHNICAL SPECIFICATION (NC CONTOL SERIES)

Model

Bending Capacity (mm)

Range Of Bending Radius (mm)

Center Distance Between Bends(mm)

Head Rotation

Videos
(Scan code)

SW25B

OD 25.4

25 ~ 150

110 ~ 1200

/

SW38

OD 38.1

38 ~ 200

170 ~ 1600

/

SW38A

OD 38.1

38 ~ 200

170 ~ 1600

0°~ 90°

SW50

OD 50.8

50 ~ 300

200 ~ 1800

/

SW50A

OD 50.8

50 ~ 300

200 ~ 1800

0°~ 90°
