NC Semi-Automatic Bending

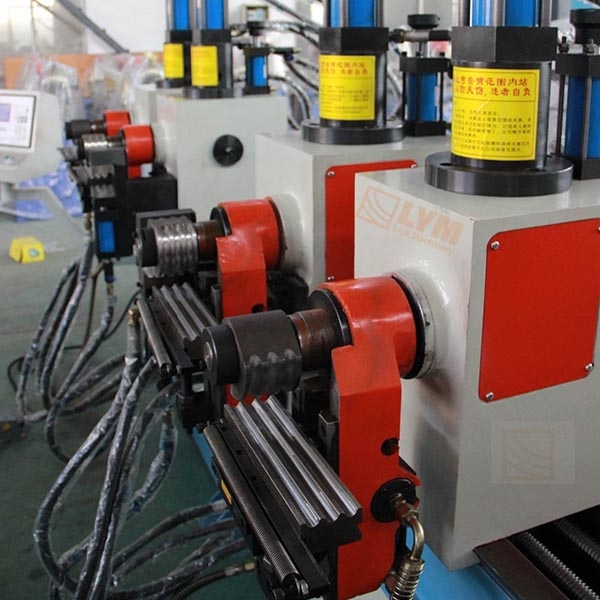

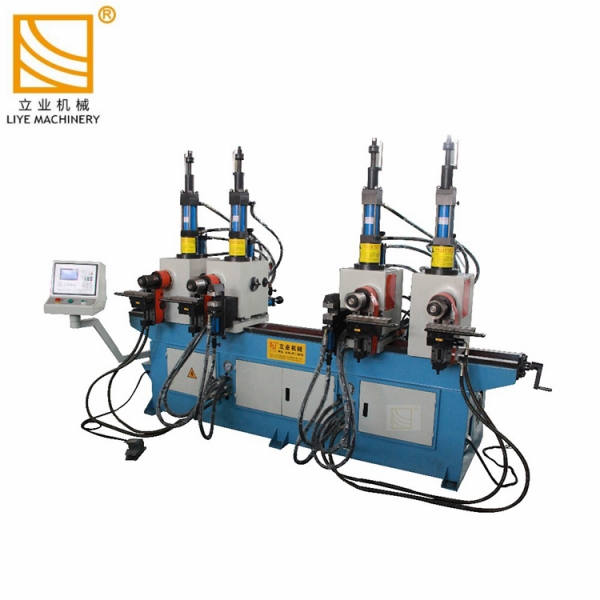

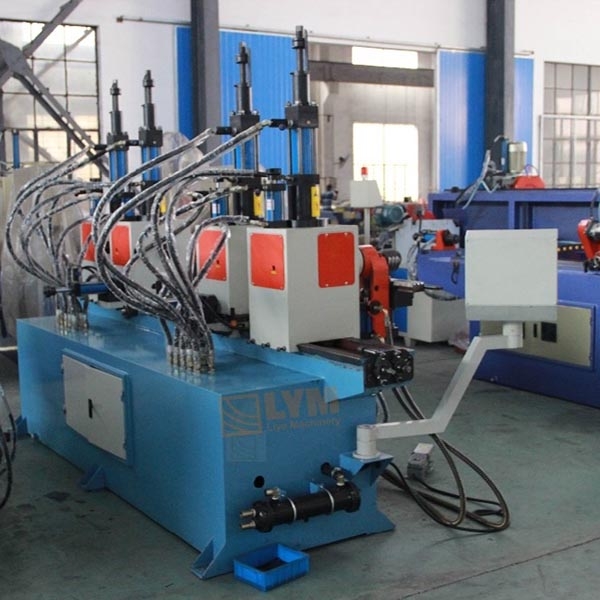

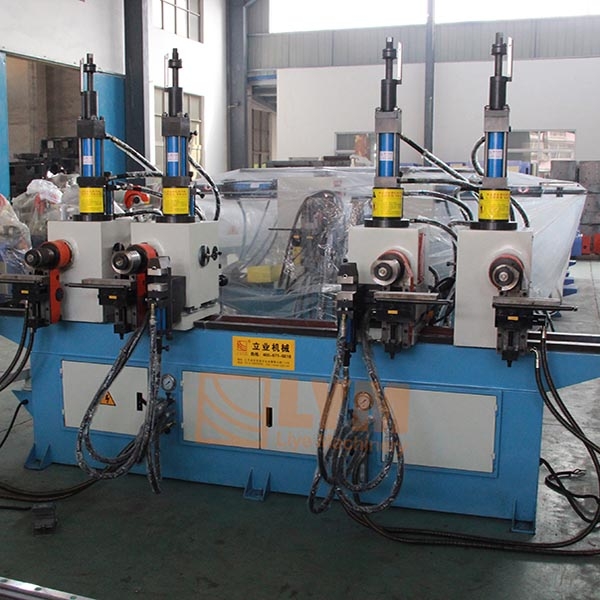

Chosen for its unparalleled productivity, the four heads tube benders SW-4 series is able to make 4 bends X Multiple tubes simultaneously. Here are some of the advantages of this Globally Patented design:

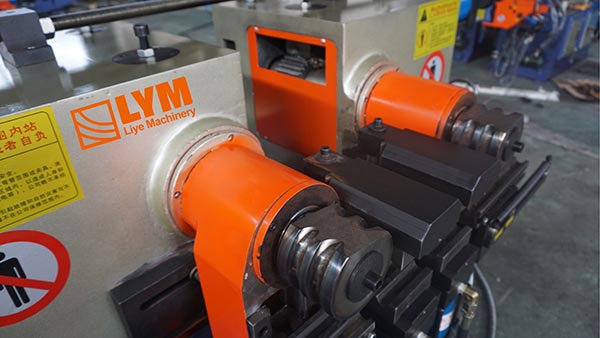

Stationary clamps to maintain the tube in position before bending
• The heads of pipe bender machine can be adjusted rapidly and they are securely fastened. During bending, the center distance will not deflect easily.
• Arc movement of the bending heads allows high production rates
• Production speed: 5 seconds
• Microcomputer control for easy operation and maintenance
• Individual bending angle setting for each bending head
• Readouts for the settings of the bending angles and straight distance between bends
• Can process 4 bends and 2 tubes to X Multiple tubes (depands on tube diameter)at the same time
• Four heas tube bender can be operated full circularly or semi circularly and can be used for the volume production of symmetrical products at both sides.
Description
| Brand Name: | LYM |
| Model Number: | SW38-4 |
| Type | NC CONTROL SEMI-AUTOMATIC |
| Certification: | CE/SGS/TUV/ISO |
| Place of Origin: | China |

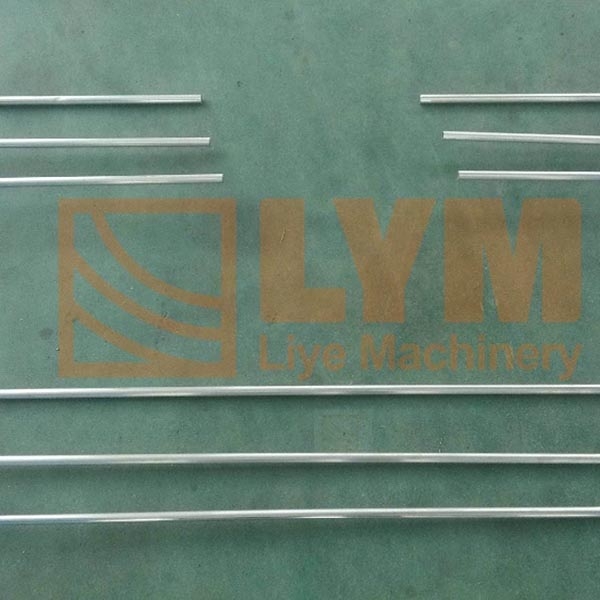

| Application | Pipes or solid bars,various materials such as steel, stainless, aluminum and copper |
| Packaging Details | Packed in stretch film firstly,and then reinforced with plywood for outer packing |
FOUR HEADS PIPE BENDER MAIN TECHNICAL SPECIFICATION (NC CONTOL SERIES)
| Model | Bending Capacity (mm) | Range Of Bending Radius (mm) | Center Distance Between Bends(mm) | Videos (Scan code) |
| SW38-4 | OD 38.1 | 38 ~ 200 | 170 ~ 1600 |  |
