Automatic cutting
• Digital counter for automatic operation (Cutting length, Quantity setup, Counter)

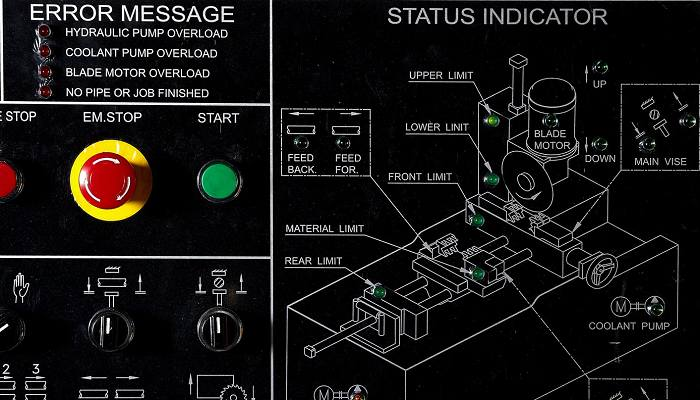

• Display of Movements on Control Panel for Easy troubleshooting
• Feeding lengths 5mm to 700 mm(Multiple feeding can be realized)
• Patented automatic angle rotation cutting for tubes and bars
• Vertical sliding saw head ensures stable and precise cutting
• Backlash eliminating device extends saw blade life
• Counter Balance System for maximum stability through the entire cut
• Patented high accuracy cutting technology

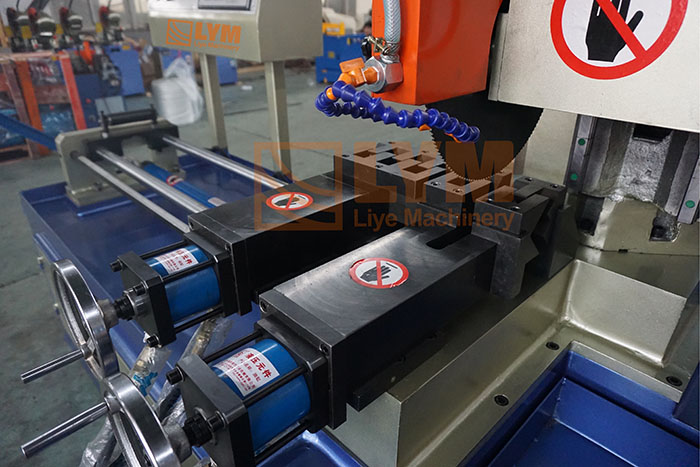

• Rigid Clamping vise provides secure material holding
• Automatic lubrication system maintains good work performance
• Circulating cooling system results in smooth cutting surfaces and longer blade life
• Electronic saw blade protection cover for safety operation
Description
Brand Name: | LYM |

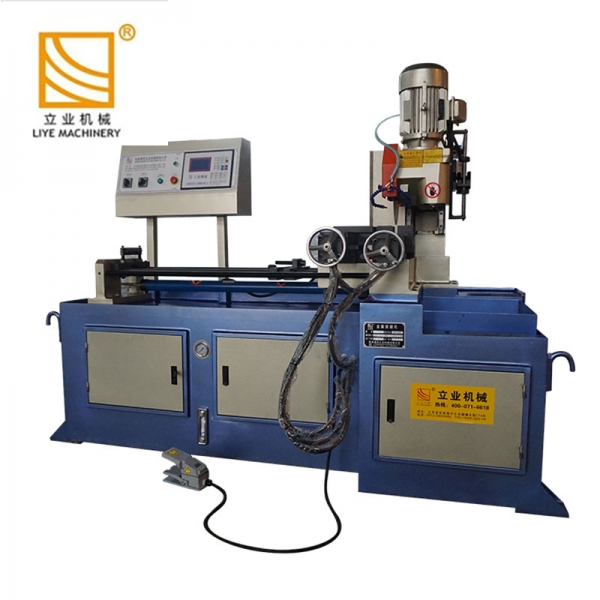

Model Number: | YJ-325CNC-Y/YJ-355CNC-Y/YJ-425CNC-Y |
Type | AUTOMATIC HYDRAULIC FEEDING+CUTTING |
Certification: | CE/SGS/TUV/ISO |
Place of Origin: | China |

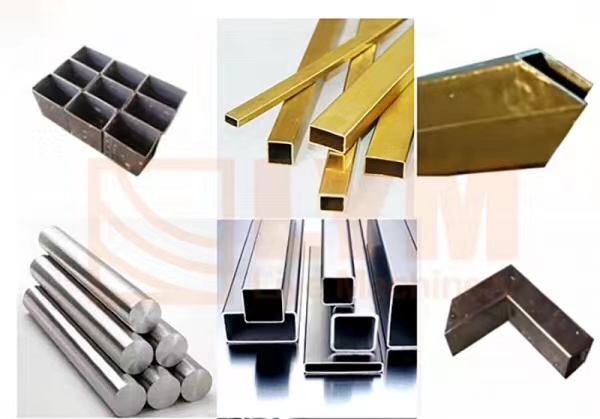

Application | Pipes,Profiles,or solid bars,various materials such as steel, stainless |
Packaging Details | Packed in stretch film firstly,and then reinforced with plywood for outer packing |
• Vertical sliding saw head ensures stable and precise cutting
• Rigid Clamping vise provides secure material holding
METAL CIRCULAR SAWING MACHINE CUTTING MILD STEEL CAPACITY ( AUTOMATIC HYDRAULIC FEEDING+CUTTING SERIES)
Model | 〇 Round Tube (mm) |
|
|
|
|
YJ325CNC-Y-V(clamp up and down) | 70 | 70X70 | 70X90 | 45 | |
YJ325CNC-Y-H(clamp left and right) | 100 | 90X90 | 90X90 | 45 | |
YJ355CNC-Y-V(clamp up and down) | 80 | 80X80 | 80X100 | 50 | |
YJ355CNC-Y-H(clamp left and right) | 120 | 100X100 | 100X100 | 50 | |
YJ425CNC-Y-V(clamp up and down) | 90 | 90X90 | 80X100 | 70 | |
YJ425CNC-Y-H(clamp left and right) | 120 | 100X100 | 100X100 | 70 |
Square Tube (mm)
Rectangular (mm)
Solid bar (mm)
