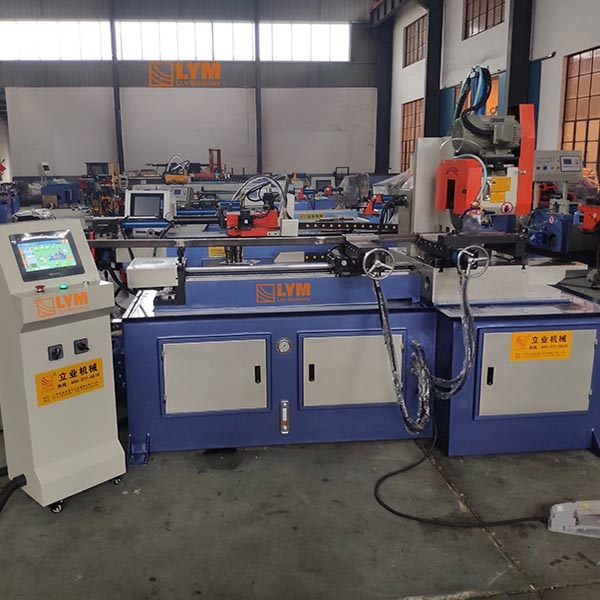

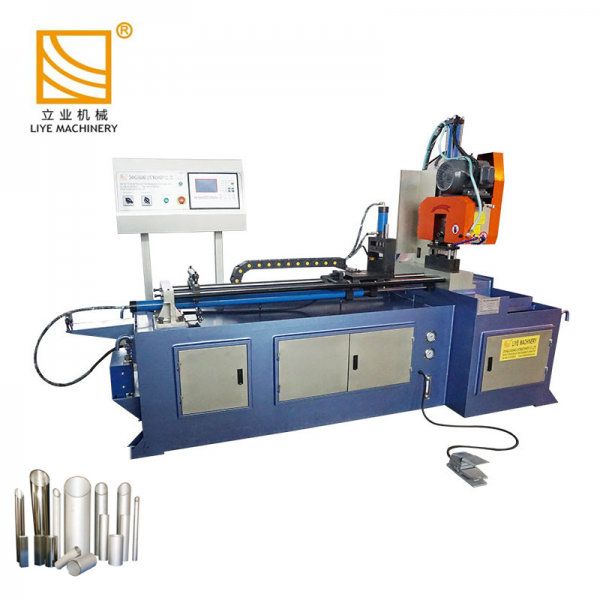

AUTOMATIC CNC TUBE CUTTING MACHINE WITH HEAD ROTATION AND TAILINGS CUTTING FUNCTION


  • Automatic operation Circular Sawing Machine to cut metal tube,profiles or solid bars LYM CNC tube cutting machine can realize automatic feeding,cutting head rotation,and material tailing cutting function
Direct supply from the manufacturer
Order phone:+86-13812981723
E-mail: liye@liyemachine.com

Detail


Pipe and bar Tailing Cutting
• LYM pipe cutting machine can set tailing cutting function,set the shortest crop lengths, the YJ-R-T bring maximum material savings and more production

Performance
• Vertical Slide for maximum cutting power and rigidity
• Capacity up to 120mm in Tube and 70 mm in Solid Bars

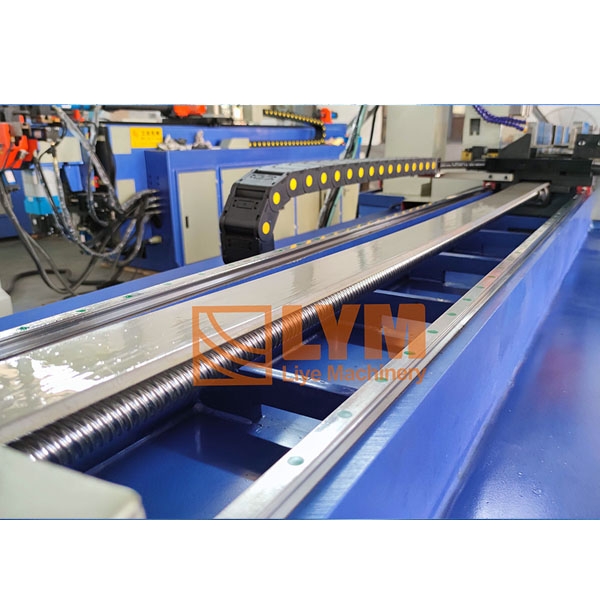

• Flexible Gripper Feeding make the feeding precision
• Patented automatic angle rotation cutting for tubes and bars


Software

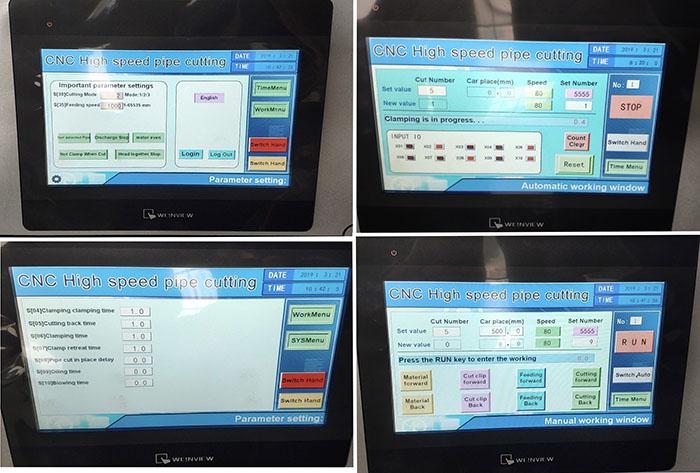

• Intuitive and User-Friendly Interface with Touch Screen system
• Ability to program multiple cutting lengths per pipes and bars
• Large file storage system
• Safety Covers (optional) for maximum operator protection and comfort
• Ability to use Flat and Bundle clamps for multiple tubes cutting

Description

Brand Name:

LYM

Model Number:

YJ-325CNC-S/YJ-355CNC-S/YJ-425CNC-S

Type

AUTOMATIC SERVO FEEDING+CUTTING+ROTATION(OPTIONAL)+TAILING CUTTING(OPTIONAL)

Certification:

CE/SGS/TUV/ISO

Place of Origin:

China

Application

Pipes,Profiles,or solid bars,various materials such as steel, stainless

Packaging Details

Packed in stretch film firstly,and then reinforced with plywood for outer packing



Capacity up to 120mm for Tube and 70mm in Solid Bars
Patented automatic machine head rotation cutting for pipes and bars

• Vertical sliding saw head ensures stable and precise cutting

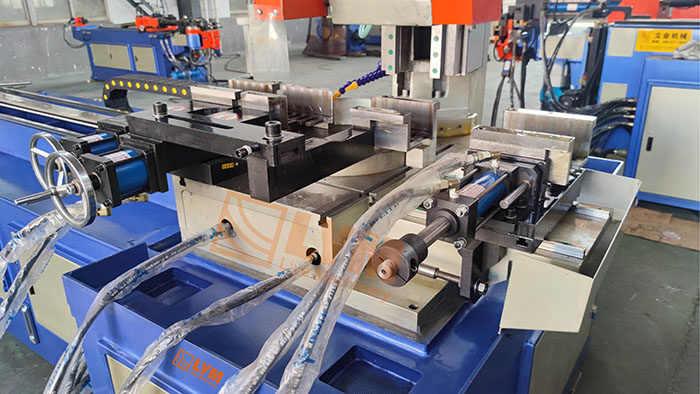

• Clamping vise provides secure material holding



Software

• Intuitive and User Friendly Interface with Touch Screen system
• Ability to program multiple cutting lengths per bar
• Large file storage
• Ability to use Flat and Bundle clamps for multiple tubes cutting
• With tailing cutting function,set the shortest crop lengths,save material

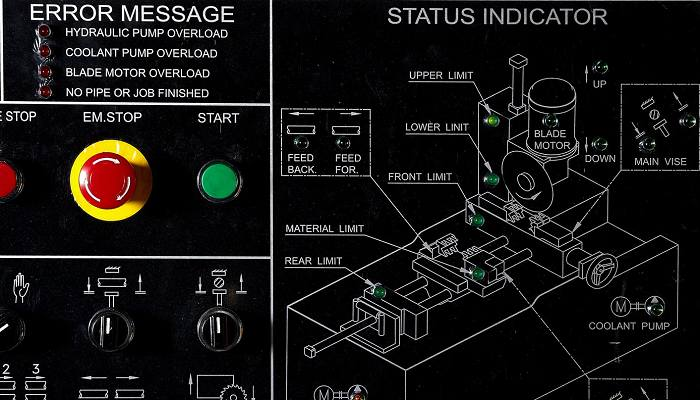

Digital Display of Feeding Length and Programmable Counter. Control Panel with Movements’ Display for Easy troubleshooting

• Digital counter for automatic operation (Cutting length / Quantity set up / Counter)


METAL CIRCULAR SAWING MACHINE CUTTING MILD STEEL CAPACITY ( AUTOMATIC SERVO FEEDING SERIES)

Model

〇 Round Tube (mm)

 Square Tube (mm)

 Rectangular (mm)

 Solid bar (mm)

Video (Click Here)

YJ325CNC-S-V(clamp up and down)

70

70X70

70X90

45

YJ325CNC-S-H(clamp left and right)

100

90X90

90X90

45

YJ355CNC-S-V(clamp up and down)

80

80X80

80X100

50

YJ355CNC-S-H(clamp left and right)

120

100X100

100X100

50

YJ425CNC-S-V(clamp up and down)

90

90X90

80X100

70

YJ425CNC-S-H(clamp left and right)

120

100X100

100X100

70
