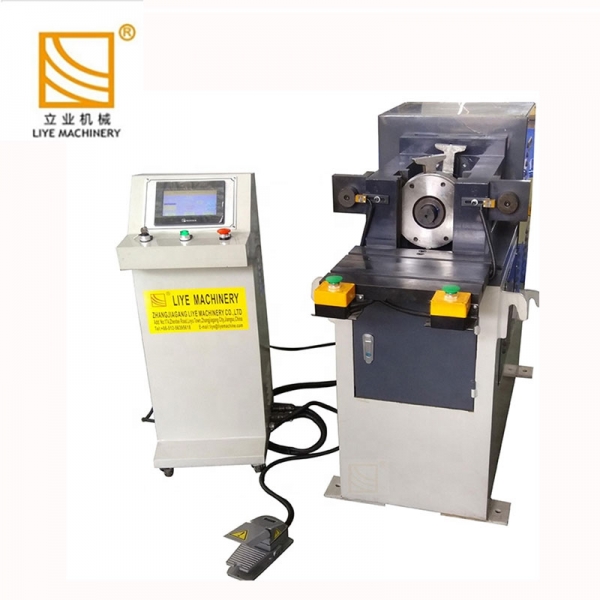

The LYM TEF Tube End Former Series is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. These machines are different than conventional end forming machines, due to their low setup, high flexibility, superior precision, and compact design.

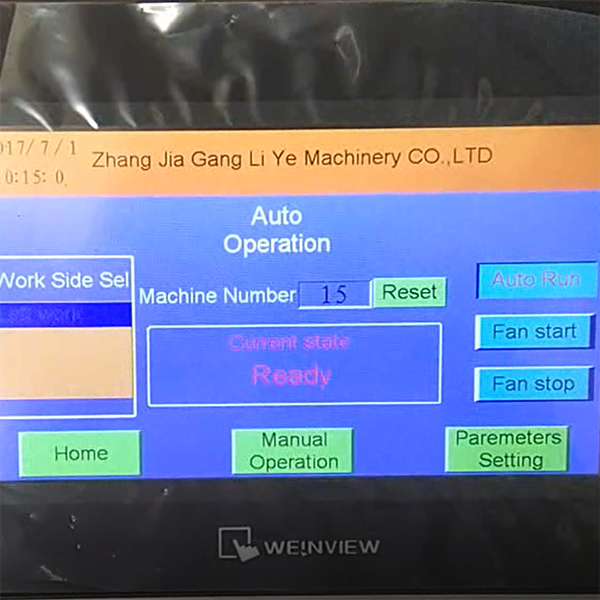

• LYM tube end forming machine is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.

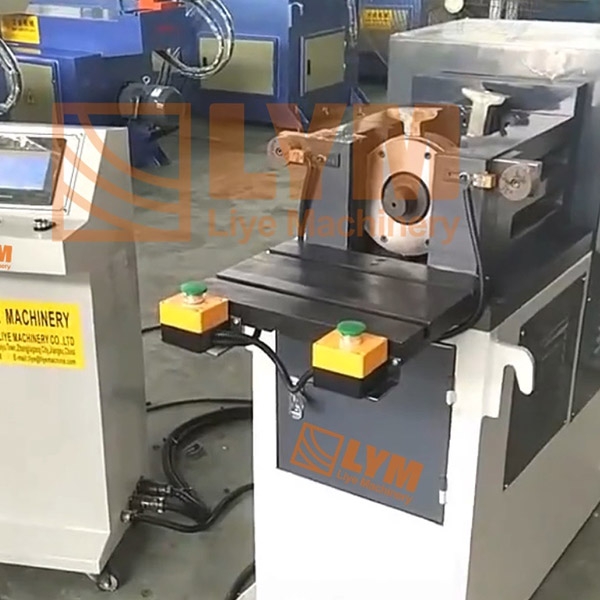

•  With Single-station arrangement, pipe end forming machine can shrink or expand the tube end. Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.

• Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.

• The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Description

Tube diameter up to 120mm in size, 1 operating station

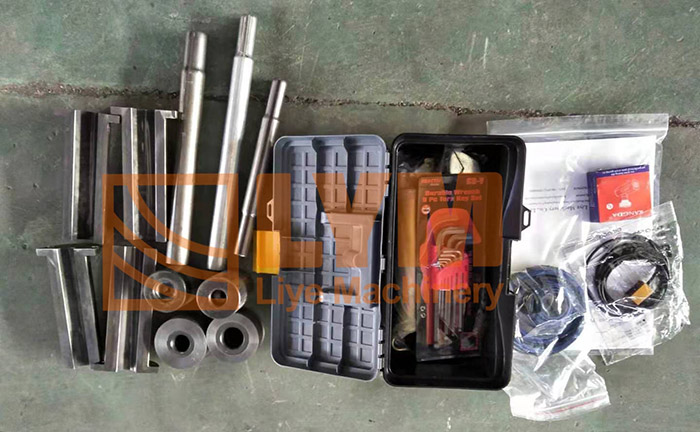

Standard accessories

• One pair of mould (Forming mould and clamping mould)
• One set of common tools

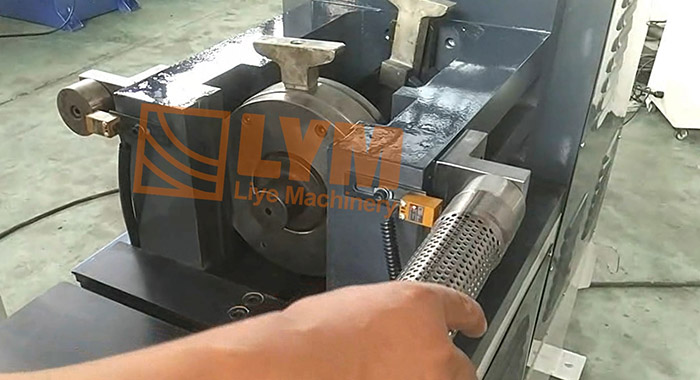

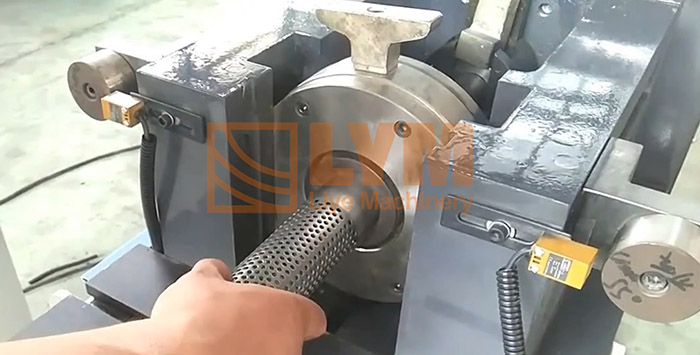

Single head forming with go/no go gauge to test the tube diameter after forming

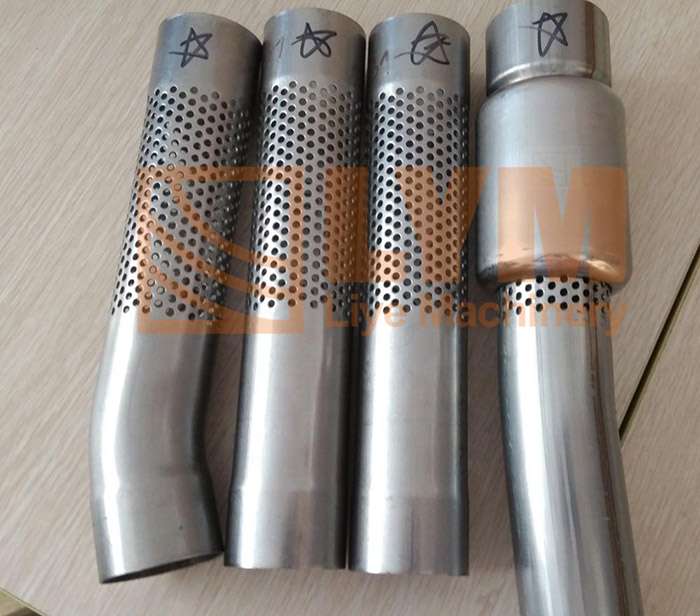

Part of the sample tube

LYM Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others.
